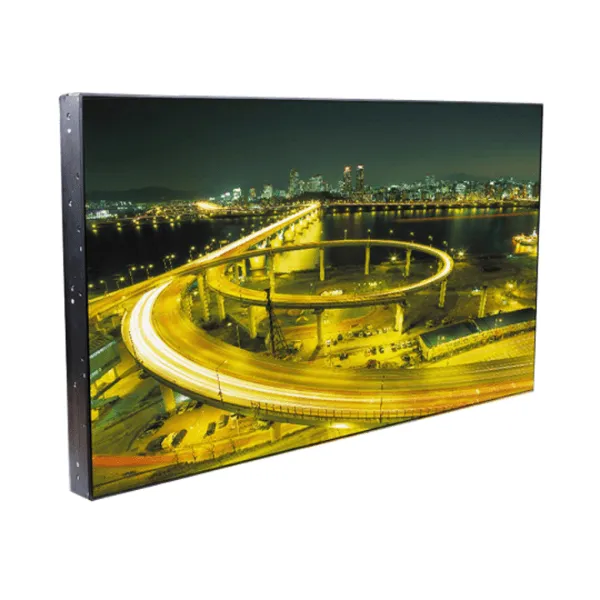

Uniview VGA LCD wall display monitor MW5255-P3-D with 1920x1080 resolution, ideal for CCTV security surveillance monitoring of cameras.
Model: MW5255-P3-D
- 55" LCD Splicing Monitor
- 1920x1080 Resolution
- HDMI, DVI, and VGA Output
Features
- Industrial-grade panelHigh reliability integration design
- Built-in image splicing function
- Support special splicing compensation
- Support screen to prevent cauterizing, image flip
- Support white balance
- Support infrared control and RS232 hoop control
- Support record and display working time on panel
- Support fast splicing unit ID, convenient for adjustment
- Supports double frame function
- Power delay function after power
- Support rich video signal interfaceDVIHDMIVGA
Specifications
| Panel parameters | |
| Resolution | 19201080 |
| Physical splicing (mm) | 3.5 |
| Color | 16.7M |
| Brightness(cd/m2) | 500 |
| Contrast | 4000:1 |
| Response time(ms) | 8 |
| AngleH/V | 178/178 |
| Interface | |
| Video input | 1 DVI1 HDMI1 VGA |
| USB | 1 USB |
| Control Interface | 1 RS-2321 RS-2321 IR interface |
| Device | |
| DimensionWHDmm | 1213.70684.50125.59 |
| Power supply | AC 100240V |
| Power consumptionW | 220 |
| Weightkg) | 24.5 |
| Operating temperature | 050 |
| Operating humidity | 20�%non-condensing |
